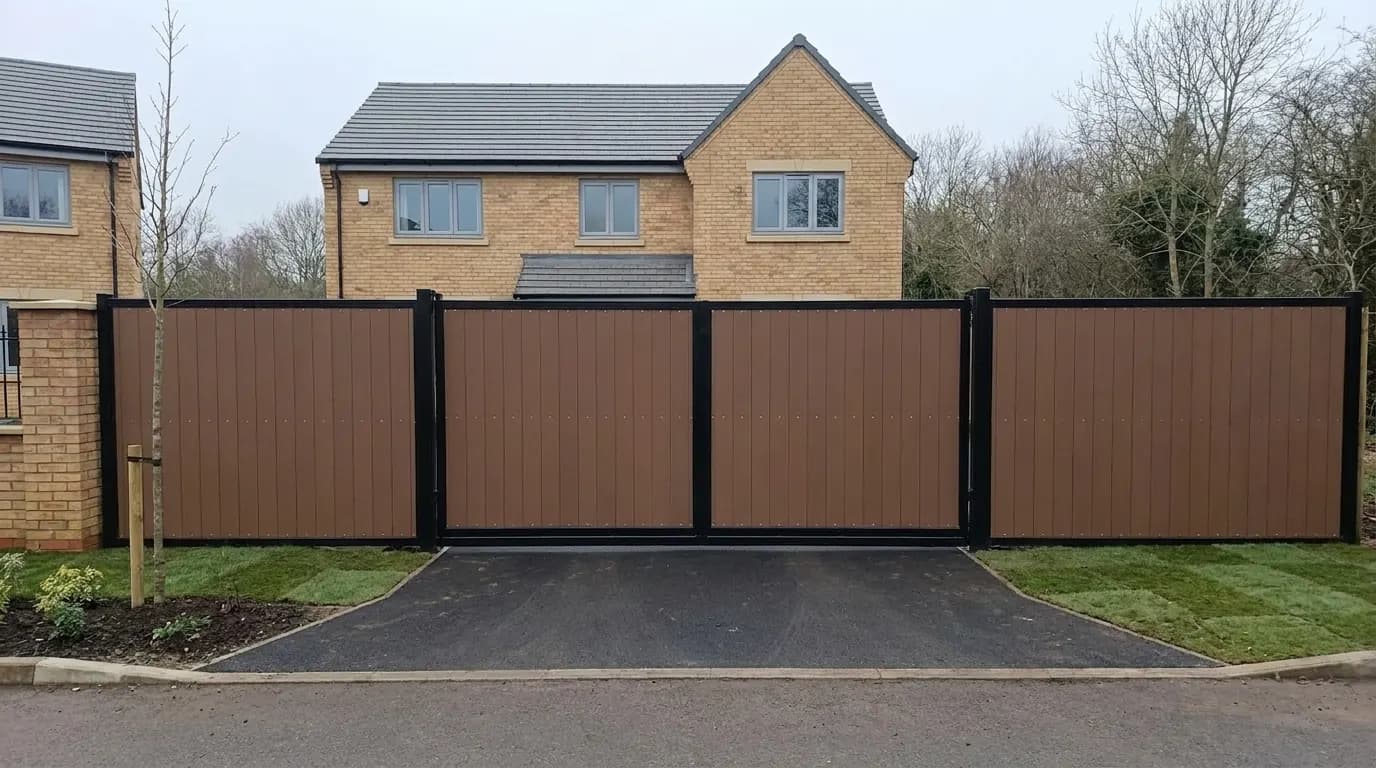

Automated driveway gates of the kind installed and serviced across Lancashire

Lancashire service area

Gate Automation in Chorley

Chorley's gate jobs are shaped by gradient more than anything else. The borough rises east from the town centre towards the West Pennine Moors around Rivington, Anglezarke and Brinscall, and a lot of the housing on that side sits on driveways that climb or fall away from the road. A swinging gate leaf that clears the ground at the hinge will not clear it three feet further along on a rising drive, and that single geometry problem decides the design of most installations on the eastern side of the borough.

Chorley Council is the planning authority for the borough and designates conservation areas within it. The permitted development limits are the national ones: one metre where the gate faces a highway used by vehicles, two metres elsewhere, with no permitted development at all inside the curtilage of a listed building. Chorley has a substantial number of listed structures, including Astley Hall in Astley Park, so on older properties the listing status is worth checking before anything is ordered.

Out on the rural fringe the constraints change again. Entrances off unclassified lanes need enough setback that a vehicle can pull clear of the carriageway while the gate opens, and visibility in both directions matters more than it does on an estate road. Whatever the site, the gate is machinery in law once it is powered, so it has to be force tested to BS EN 12453 and fitted with the safety equipment the risk assessment calls for.

Gate services in Chorley

Gate Automation

Motorise the gates you already have, with the safety equipment the law requires.

Gate Installation

New gates supplied and fitted, from the posts up, manual or automated.

Gate Servicing

Planned maintenance and safety checks that keep an automatic gate legal and working.

Gate Repair

Gates that have stopped working, dropped, or been damaged, put right.

Gate questions in Chorley

Can automatic gates work on a steep driveway in Chorley?
Yes, but the gate has to be designed around the slope rather than fitted in spite of it. On a drive that rises away from the road, a conventional swinging leaf grounds itself part way through the sweep, so the answer is usually rising hinges, a gate hung to open downhill, or a sliding gate that runs across the slope instead of into it. The gradient has to be measured on site, because a slope that looks mild often is not.
Do I need planning permission for gates in Chorley?
Not if the gate is one metre or less where it faces a road used by vehicles, or two metres or less elsewhere on the boundary, in which case it falls under permitted development. Above those heights you need permission from Chorley Council. Permitted development does not apply at all within the curtilage of a listed building, and an Article 4 direction can withdraw it inside a conservation area.
What should I think about for gates on a rural lane near the moors?
Setback is the main thing: there needs to be enough depth off the carriageway for a car to pull clear of passing traffic while the gate opens. On the narrow unclassified lanes running up towards Rivington and Anglezarke there is often no verge to use, so the gate line may need moving back into the property. Visibility in both directions when pulling out matters just as much as the gate itself.
Are underground motors suitable on a sloping Chorley drive?
They can be, but the foundation box has to be sited and drained so that surface water running down the slope does not collect in it. A box at the bottom of a falling drive becomes a sump, and the motor inside it will not last. Ram arms mounted to the pillar avoid the issue entirely and are often the more sensible choice on a sloping or exposed site.
Sliding or swing gates on a slope?
Sliding gates handle slopes better, because the leaf travels along the boundary rather than sweeping across ground that changes height. A sliding gate needs a level track and a clear runback roughly as wide as the opening, which is the constraint on a tight plot. Swing gates can still work on a gradient with the right hinges and the correct opening direction, and they cost less to fit.
What does gate automation cost in Chorley?
Cost comes down to gate weight, drive type, how far the power has to be run and what access control is added, and on sloping or rural sites the groundwork often becomes the largest single item. A long armoured cable run up a drive is a different job from a spur across a small front garden. The opening has to be seen before any of that can be priced honestly.
Can old wrought iron gates be automated?
Usually yes, provided the leaves are sound and the posts or pillars can carry the extra load an automated cycle puts through them. Older iron gates are heavy, so the hinge condition and the pillar fixings matter more than the ironwork itself. Where a pillar is loose or a hinge pin is worn, that gets put right first, because a motor will find any weakness quickly.
What happens if the gate hits something while it is closing?
A correctly set gate stops and reverses, because obstacle detection is a legal requirement rather than an optional extra. The controller senses the increase in load, and photocells and safety edges provide the second and third layers of protection. Those forces are measured against the limits in BS EN 12453 at commissioning, and they need re-checking at each service because they drift as the gate ages.
Do I need a mains supply, or will solar power a rural gate?
Solar with a battery can run a lighter gate on a rural entrance where a mains run would mean trenching hundreds of metres up a drive. The limits are gate weight, how many times a day it cycles, and how much winter daylight the panel actually gets, which on a north facing moorland site is not much. Heavier gates and anything cycling frequently need a proper armoured mains supply.
How often should a gate in an exposed Chorley location be serviced?
Annually as a minimum, and more often on exposed sites near the moors where wind loading and driving rain accelerate wear. Wind pushes repeatedly on a solid infill leaf and works the hinges and the drive harder than a sheltered site would, and water finds its way into enclosures at the joints. The service should always end with a fresh force test rather than just a visual check.
